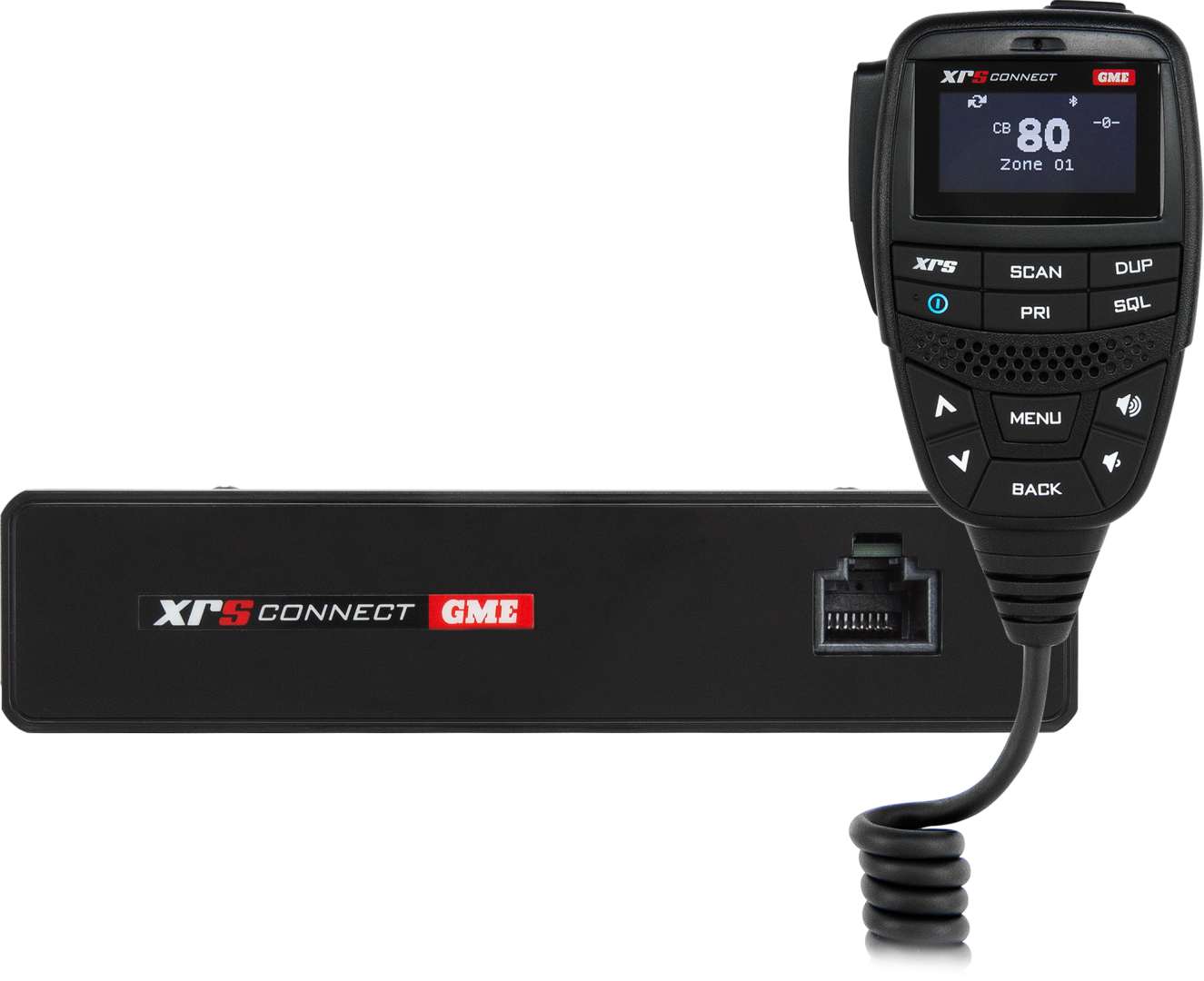

GME UHF CB RADIO XRS CONNECT 4WD PACK (XRS-370C4P)

SKU: MPWR-28851

$759.00

Description

GME UHF CB RADIO XRS CONNECT 4WD PACK (XRS-370C4P)

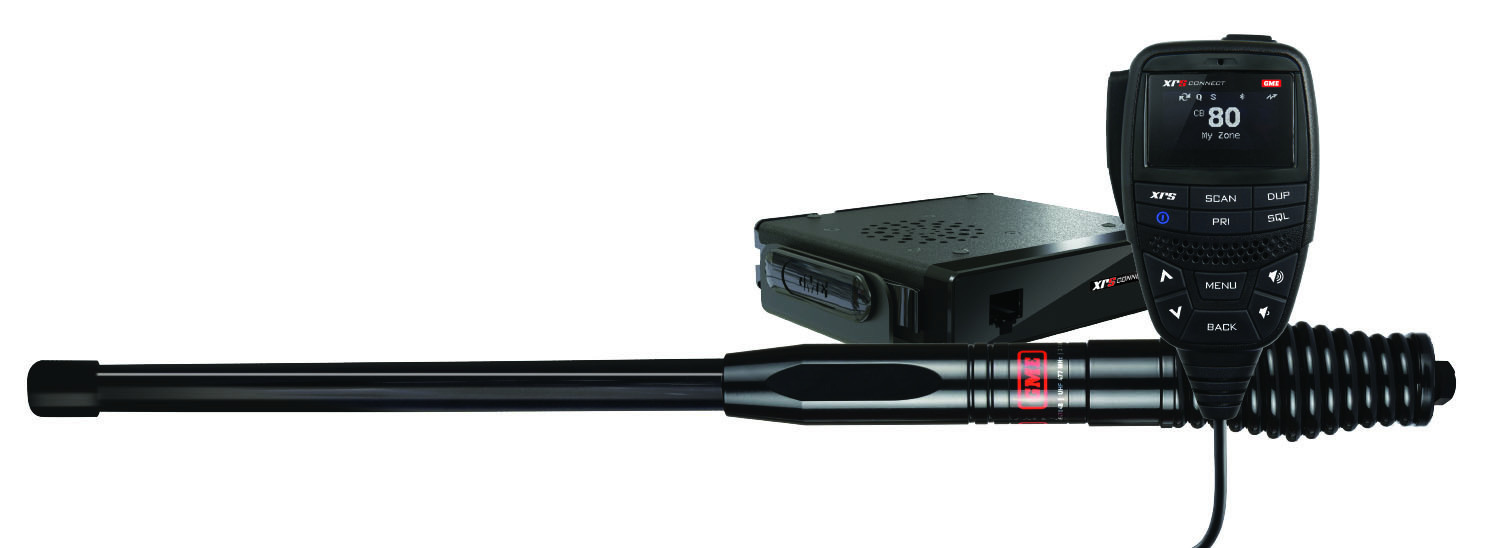

Designed for the hardcore 4WD enthusiast, the XRS Connect 4WD Pack combines the top-of-the-line XRS-370C Compact UHF CB radio with the seriously heavy duty 2.1dBi AE4704B radome antenna. The result is a premium communications setup complete with the latest features and technology, including in-app control.

Featuring:

Rugged, die-cast metal chassis with built-in speaker
Super Compact design
Bluetooth wireless technology - smartphone control
Professional grade OLED speaker microphone
Class-leading 2 watt front-facing speaker
User-customisable buttons
5 year warranty
Australian design and manufacture

Included in box:

XRS Connect UHF CB radio (XRS-370C)
Professional grade speaker microphone (MC664B-M)
Heavy duty radome antenna (AE4704B)
Magnetic microphone mounting bracket (MB207)
Microphone extension lead (LE040)
Microphone extension adaptor kit (AD008)
12V DC power lead (LE09)
Mounting bracket
Mounting hardware
Quick Start Guide

Warranty

5 year warranty. Please refer to GME's warranty terms and conditions.
https://www.gme.net.au/au/warranty-period

Specifications

GENERAL

Compliant Specification

Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.

Frequency Range TX

476.425-477.4125 MHz

Number of Channels

Channel Spacing

12.5 kHz

Operation Mode

Simplex or half Duplex with repeater talk around.

Scanning Speed

25 ms per channel (40 channels per second)

Antenna Impedance

50 Ohms nominal

Nominal Battery Voltage

12 volts DC

Operating Voltage Range

10-16 volts DC

Battery Polarity

Negative Earth

Standard Test Voltage

13.8 volts DC

Overvoltage Protection

30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.

Reverse Voltage Protection

Diode Crowbar

Overcurrent Protection

In-line 2 amp fuse

Operating Temperature

-10°C to 60°C

Zones

8 (50 channels per zone)

Scan lists

TRANSMITTER

RF Output

5 watts

Spurious Emission

< - 70 dBc

Frequency Error

< ± 1.5 kHz

Modulation

Maximum Deviation

< ± 2.5 kHz at + 20 dB limiting

Transmit Frequency Response

+6 dB per octave 300 Hz to 3 kHz +1-3 dB

Demodulated Audio Signal to Noise

> 45 dB unweighted

Current Consumption

1.5 amps with 50 Ohms termination

RECEIVER

Intermediate Frequencies

38.85 MHz, 450 kHz

Sensitivity

- 122 dBm for 12 dB SINAD unweighted

Selectivity

- 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz

Intermodulation Immunity

-72 dB

Blocking Immunity

-98 dB

Spurious Response Immunity

70 dB

Audio Output Power

3 watts average into 4 Ohms

Audio Signal to Noise

> 45 dB unweighted

Current consumption

< 175 mA muted 750 mA Full volume

Conducted Spurious Emission

< - 70 dBm

MECHANICAL SPECIFICATIONS

External Speaker

3.5 mm mono jack

OTHER

Display type

OLED
