ROADVISION LED LIGHT BAR S40 SERIES - 40" INCH

ROADVISION’s S40 has been designed as a super compact long range light bar series perfect for truck, 4x4 & SUV’s, licence plate & roof rack mounts and applications where a larger light profile bar just won’t fit. The performance characteristics are focused on long range beam penetration with a lower intensity perfect for highway driving. Coupled with Roadvision’s Thermal Management Technology the S40 series delivers outstanding lux performance from a very small package reaching up to 916m @ 1 lux from a 50” bar.

Features:

• S40 Stealth Series single row LED bar lamps produce up to 8,402lm of instant light output

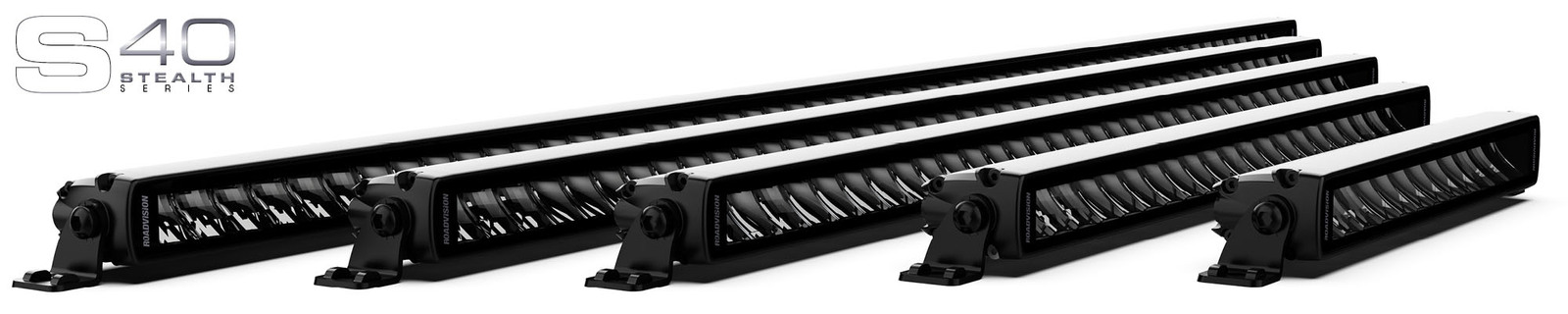

• Available in 13", 21", 32", 40" & 50" models
• Smoked lens and blackout mounting hardware
• 3W Osram LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input & low current draw
• 50,000 hour LED lifespan with solid state technology
• Thermal management technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation
• Adjustable side mounts & low-profile slide mounts
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

Specifications:

• Beam Type -  Projector Combo 6 Driving / 36 Spot
• Maximum Lumens - 11706lm
• Beam Distance - 1668m
• Maximum  Watts - 188W
• Light Source - 42x3 Watt Osram LED's
• Current Draw Amps - 11.7~17.2A @ 13.8V
• Voltage Input - 10-30V DC

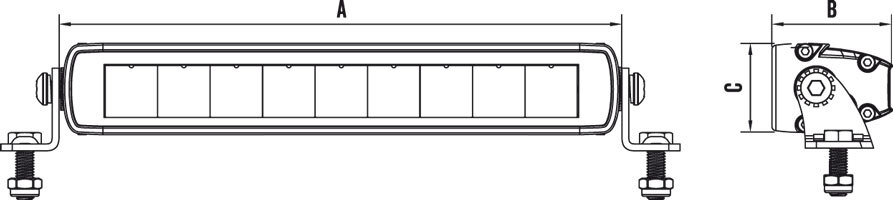

• Dimensions - 1005x55x40mm
• Bar Length - 40" (1005mm)
• Wiring - 2 Pin ATP Plug
• Maximum LUX @ 10m - 6957 Lux
• Meters @ 1 LUX - 834m
• Meters @ 0.5Lux - 1668m

Available for supply and fitment in our Brisbane showroom or delivery to your business or residential address Australia Wide.

7 Year Warranty

Please refer to the Roadvision warranty terms - https://roadvision.com.au/warranty/

SKU	MPWR-53212
Brand	ROADVISION
Shipping Weight	5.0000kg
Shipping Width	1.050m
Shipping Height	0.450m
Shipping Length	0.550m
Shipping Cubic	0.259875000m3
