ROADVISION’s S70 has been designed for the best of both worlds, maximum intensity and long range beam penetration from the flagship dual row series in the range suited to the serious off road enthusiast, professional off road racer or consumer that just wants the best of the best. Delivering the best performance characteristic mix of high intensity light and long range beam penetration, the S70 series delivers up to 27,500lm of light intensity and a staggering 1118m of beam penetration @ 1 lux from a 52” bar by utilising Roadvision’s Thermal Management & Projector Beam Technology.


• S70 Stealth Series dual row LED bar lamps produce up to 27,500lm of instant light output

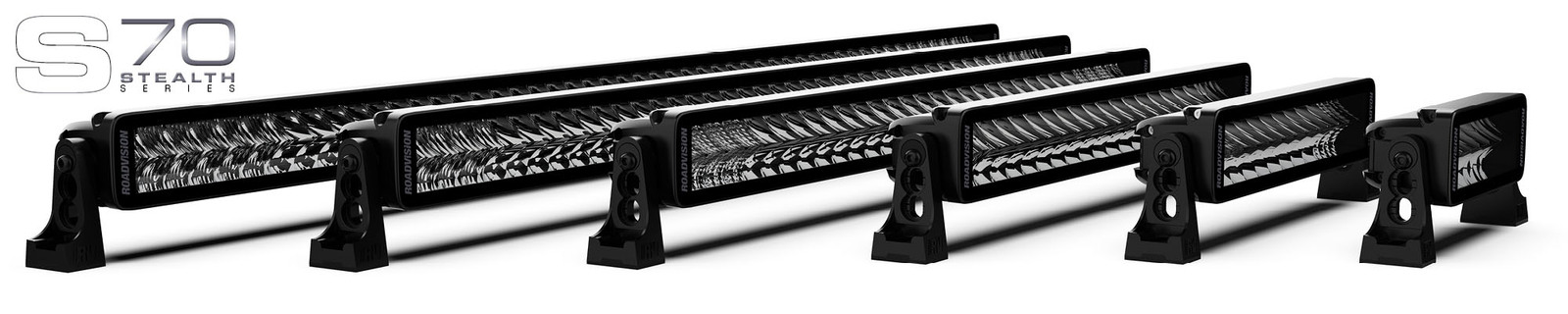

• Available in 7", 13", 21", 30", 40" & 52" models
• Smoked lens and blackout mounting hardware
• 3W Osram LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input & low current draw
• 50,000 hour LED lifespan with solid state technology
• Thermal management technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation
• Adjustable side mounts & low-profile slide mounts
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved


  • Beam Type -  Projector Combo 16 Driving / 64 Spot
  • Maximum Lumens - 22000lm
  • Beam Distance - 2145M
  • Maximum  Watts - 344W
  • Light Source - 80x3 Watt Osram LED's
  • Current Draw Amps - 15.6~32.6A @ 13.8V
  • Voltage Input - 10-30V DC
  • Dimensions - 1076x67x70mm
  • Bar Length - 40" (1076mm)
  • Wiring - No Plug
  • Maximum LUX @ 10m - 11500 LUX
  • Meters @ 1 LUX - 1072m
  • Meters @ 0.5Lux - 2145m

Available for supply and fitment in our Brisbane showroom or delivery to your business or residential address Australia Wide.

7 Year Warranty

Please refer to the Roadvision warranty terms -

SKU MPWR-53385
Shipping Weight 6.0000kg
Shipping Width 1.100m
Shipping Height 0.750m
Shipping Length 0.750m
Shipping Cubic 0.618750000m3
