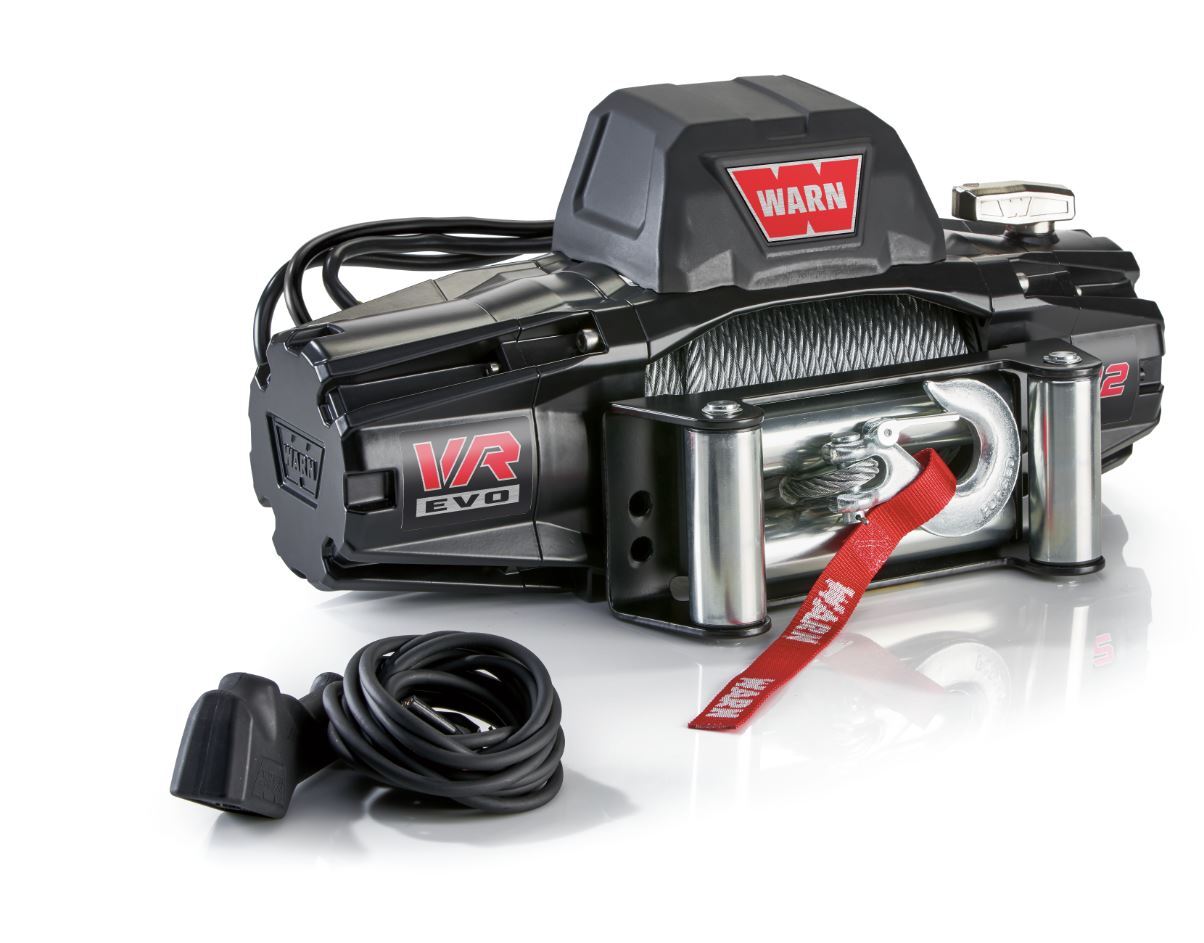

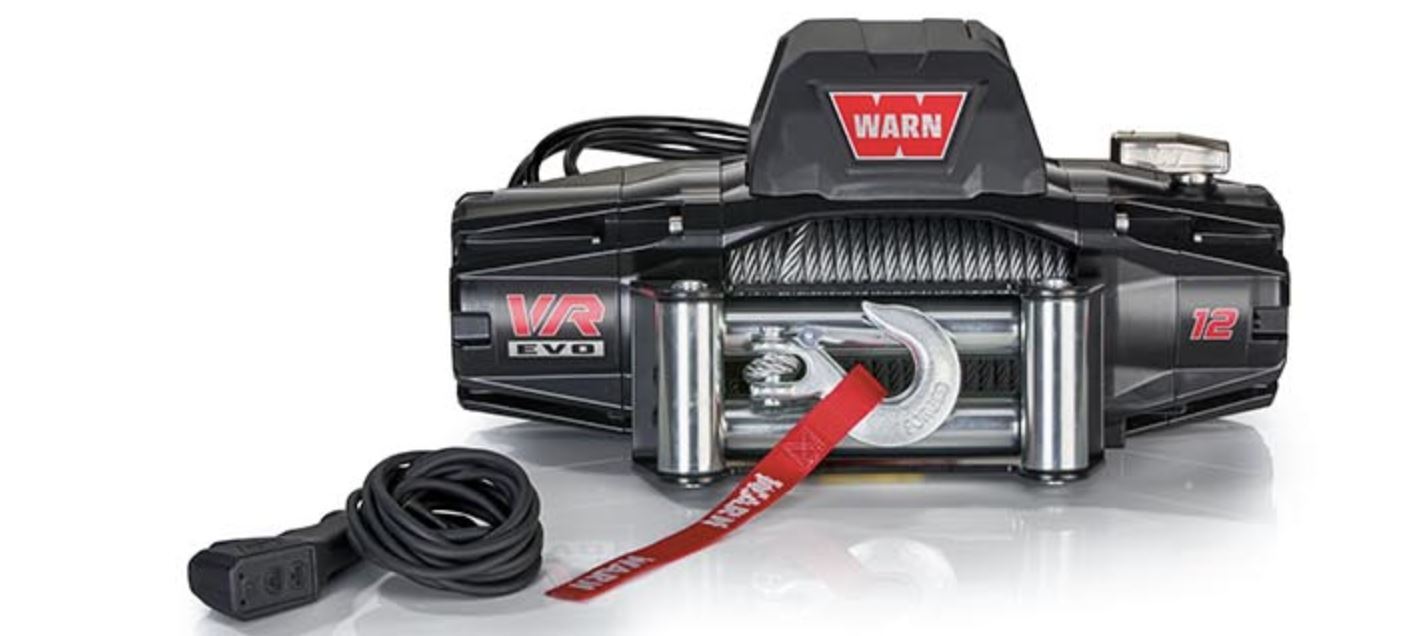

WARN EVO 12 WINCH - 12,000PD STEEL CABLE

WARN EVO 12 WINCH - 12,000PD STEEL CABLE

12V RECOVERY WINCH 26M WIRE ROPE W/ 2in1 WIRELESS REMOTE

SKU: MPWR-49076

$1,299.00

Description

Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12 and 12-S feature IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it's fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working standard-duty winches we've ever made, with tactical styling that looks great up front and at a price that won't pull you out of your budget.

Features:

A powerful series-wound motor and planetary gear train deliver faster line speed under load,with lower amp draw
IP68-rated waterproof winch construction keeps the elements out
High-performance Albright contactor delivers maximum reliability
Control packs can be relocated for low-profile installations
Durable, one-piece cast-aluminum tie-plate for added strength and durability
Two-in-one remote with wired AND wireless options for ease of use and versatility
Available with wire or synthetic rope
Limited lifetime warranty for mechanical parts and 7 years on the electrical
Designed, engineered, and tested by WARN engineers in the U.S.A.

Specifications:
Winch Model: VR EVO 12, VR EVO 12–S
Parts Numbers: 103254 (VR EVO 12), 103255 (VR EVO 12–S) Rated Line Pull: 12000 lbs. (5443 kg)
Motor: 12V DC, series wound
Electrical Controls: Albright Contactor
Remote Control: 2-in-1 plug-in remote
with wireless capability and 11.5' (3.5m) lead
Gear Train: 3-stage planetary
Gear Ratio: 234:1
Clutch (freespooling): Rotating ring gear clutch
Brake: Spring Brake
Drum Diameter/ Length:
Steel and Synthetic: 2.5/ 9.0" (6.73cm/ 23cm)
Weight:
Shipping Steel: 90.81 lbs. (41.19 kg)
Shipping Synthetic: 72.27 lbs. (32.78 kg)
Net Product Steel: 73.61 lbs. (33.39 kg)
Net Product Synthetic: 55.07 lbs. (24.98 kg)
Rope:
Steel: 3/8"x 85' (9.5mm x 25.9m)
Synthetic: 3/8"x 90' (9.5mm x 27.4m)
Fairlead: Steel: Roller

Specifications

SKU MPWR-49076
Brand WARN
Shipping Weight 43.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.600m
Shipping Cubic 0.054000000m3
