WARN - ZEON 12V WINCH 24M WIRE ROPE (10,000LBS PULLING CAPACITY)

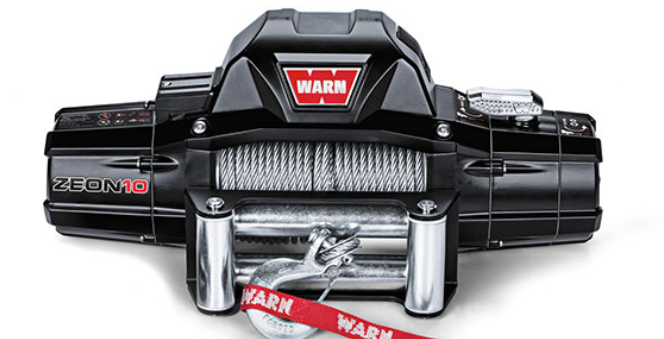

ZEON 12V WINCH 24M WIRE ROPE 10,000LBS PULLING CAPACITY
10,000 lbs. of cutting-edge pulling muscle
Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times.
- Rated line pull: 10,000 lbs. (4536 kg) single-line
- Motor: series wound, 12V DC, 24V DC
- Electrical controls: Contactor
- Remote Control: Remote switch, 12′ (3.7m) lead
- Geartrain: 3-stage planetary
- Gear ratio: 216:1
- Clutch (freespooling): Rotating ring gear
- Brake: Automatic mechanical cone
- Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)
- Weight (kit shipping): 98 lbs. (44 kg)
- Rope: 3/8″ x 80′ (9.52mm x 24.38m) steel
- Fairlead: Roller
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72″ (1.83m)
- Finish: Satin-black powder coat
Fitting - Have the product fitted to your vehicle by the experts. Available at our Brisbane North showroom/workshop, call us now on 07 3203 2155 for a fitting quotation.
Colour Coded - Stand out from the average and have your bar colour coded to match your vehicle. Available as an optional extra when having the product fitted by us or picking from the store.
*Please Note: Freight/Shipping fees & charges may vary slightly as items are based on our standard product dimensions and do not allow for additional packing materials used. If you would like an accurate shipping cost, please feel free to contact our team on 07 3202 2155.
**Photos used are for illustrative purposes only. Any photos of products may be colour matched, please be advised that standard finishes are powder coated black**
