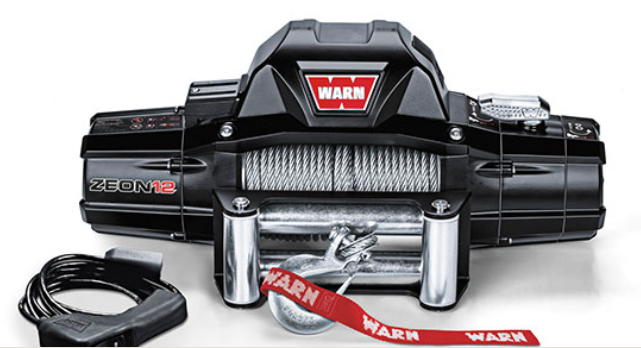

WARN - ZEON 12V WINCH 24M WIRE ROPE (12,000LBS PULLING CAPACITY)

WARN - ZEON 12V WINCH 24M WIRE ROPE (12,000LBS PULLING CAPACITY)

ZEON 12V WINCH 24M WIRE ROPE 12,000LBS PULLING CAPACITY

SKU: MPWR-24126

$2,599.00

Description

ZEON 12

Like nothing you’ve ever seen before

The WARN ZEON 12 is the face of winching. Bolt one on, and you’ll be ready for anything.

A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity.

Features:

  • Rated line pull: 12,000 lbs. (5443 kg) single-line
  • Motor: series wound, 12V DC, 24V DC
  • Electrical controls: Contactor
  • Remote Control: Remote switch, 12′ (3.7m) lead
  • Geartrain: 3-stage planetary
  • Gear ratio: 216:1
  • Clutch (freespooling): Rotating ring gear
  • Brake: Automatic mechanical cone
  • Drum diameter/Length: 3.15″/9.0″ (80mm/229mm)
  • Weight (kit shipping): 98 lbs. (44 kg)
  • Rope: 3/8″ x 80′ (9.52mm x 24.38m) steel
  • Fairlead: Roller
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72″ (1.83m)
  • Finish: Satin-black powder coat

Optional Extras:

Fitting - Have the product fitted to your vehicle by the experts. Available at our Brisbane North showroom/workshop, call us now on 07 3203 2155 for a fitting quotation.

Colour Coded - Stand out from the average and have your bar colour coded to match your vehicle. Available as an optional extra when having the product fitted by us or picking from the store.

*Please Note: Freight/Shipping fees & charges may vary slightly as items are based on our standard product dimensions and do not allow for additional packing materials used. If you would like an accurate shipping cost, please feel free to contact our team on 07 3202 2155.

**Photos used are for illustrative purposes only. Any photos of products may be colour matched, please be advised that standard finishes are powder coated black**

Specifications

SKU MPWR-24126
Brand WARN
Shipping Weight 40.0000kg
Shipping Width 0.340m
Shipping Height 0.470m
Shipping Length 0.650m
Shipping Cubic 0.103870000m3
