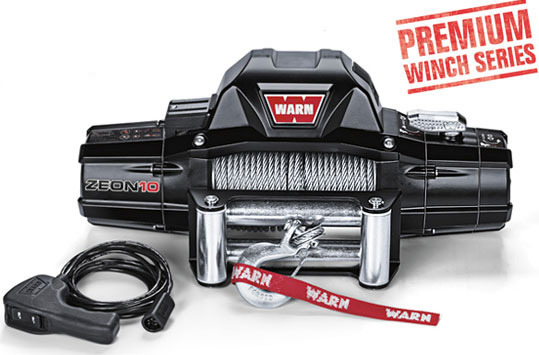

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come



10,000 lb. (4536 kg) single-line pulling capacity.



Includes 80' of 3/8" galvanized steel wire rope

Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)

Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power

Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.

Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.

*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

SPECS:

Rated line pull: 10,000 lbs. (4536 kg) single-line

Motor: series wound, 12V DC, 24V DC

Electrical controls: Contactor

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-stage planetary

Gear ratio: 216:1

Clutch (freespooling): Rotating ring gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.15"/9.0" (80mm/229mm)

Weight (kit shipping): 98 lbs. (44 kg)

Rope: 3/8" x 80' (9.52mm x 24.38m) steel

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Satin-black powder coat

Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
(615.9mm L x 181.6mm D x 199.02mm H)

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come



10,000 lb. (4536 kg) single-line pulling capacity.



Includes 80' of 3/8" galvanized steel wire rope

Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)

Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power

Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.

Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.

*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)

SPECS:

Rated line pull: 10,000 lbs. (4536 kg) single-line

Motor: series wound, 12V DC, 24V DC

Electrical controls: Contactor

Remote Control: Remote switch, 12' (3.7m) lead

Geartrain: 3-stage planetary

Gear ratio: 216:1

Clutch (freespooling): Rotating ring gear

Brake: Automatic mechanical cone

Drum diameter/Length: 3.15"/9.0" (80mm/229mm)

Weight (kit shipping): 98 lbs. (44 kg)

Rope: 3/8" x 80' (9.52mm x 24.38m) steel

Fairlead: Roller

Recommended Battery: 650 CCA minimum for winching

Battery leads: 2 gauge, 72" (1.83m)

Finish: Satin-black powder coat

Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
(615.9mm L x 181.6mm D x 199.02mm H)

SKU MPWR-17071
Brand WARN
Shipping Weight 45.0000kg
Shipping Width 0.340m
Shipping Height 0.400m
Shipping Length 0.650m
Shipping Cubic 0.088400000m3
Unit Of Measure each
